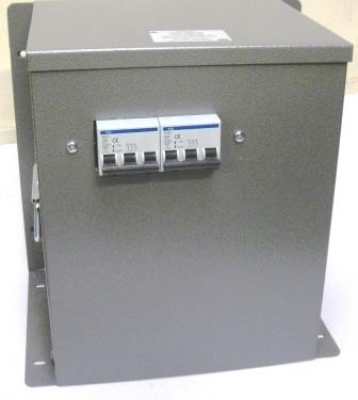

Product Description: 5000VA 230v to 230v CTE & MCB,s Hardwired
Product Specification
Part number:
BPS5120
VA:
5000
Input vac:
230
Input current amps:
20.00
Output vac:
230
Output current amps:
20.00
Case:
P5 Industrial floor/wall mounting case IP23
Dimensions:
Ht:353 L: 350 W:242 (mm)
Weight:
28kg
Surge protection:
SL35 Surge Limitor
Type:
Safety Isolating transformer Conforms to EN61558-2-23 CE & RoHS
Input Termination:
Screw terminals
Primary Protection:
MCB'S 20A 3P Type C
Input notes
RFI & EMI screening for audio applications
Output Termination:
Screw terminals
Secondary Protection:
MCB'S 20A 3P Type C
Prices per unit
1-4
5-24
25-49
50-99
100+
£370.00
£351.50
£333.00
£323.75
£314.50
Quantity:
Part number: BPS5120
5000VA 230v to 230v CTE & MCB,s Hardwired
Please Note: Extras selected from the below list will be added to each of your transformers.
If you have selected 5 transformers and you would like the same extra for each, then please only select the extra once.
Customise & Buy - Customise your transformers with these extras
Part No.
Description
Price
Quantity
ES01
Electrostatiic screen
7.00
Notes:
An electrostatic screen is a layer of copper foil wound over the primay which is grounded to earth. This shield is intended to reduce the electric field and their by reduce interence Also it reduces leakage current
