3P+PE Auto Delta Delta
Click image to enlarge

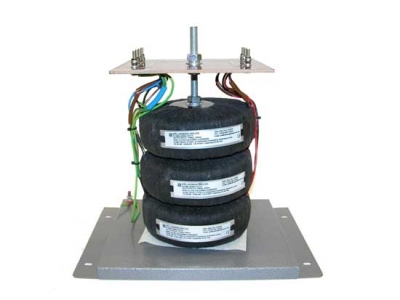

3P+PE Auto Delta Delta
- Three Phase Autowound transformer
- Three Phase plus protected earth
- House in wall floor mounting steel case
- 1kva to 20kva
- Multitude of primary & Secondary voltages
- Maybe used to either Step up or Step down
- Delta Delta connection
- Manufactured in accordance with EN61558 CE & RoHS Compliant
- British Built in our own factory
- Contact us for a quotation on your requirements
Product Filters
| Part Number | Description | Va | Input Voltage | Output Voltage | Price | Quantity | |
 |
3PAD0020 | 1000VA 3P 415-230v Hardwired | 1000 | 415 | 230 | ||
|
|
3PAD0021 | 1000VA 3P 400-230v Hardwired | 1000 | 400 | 230 | ||
|
|
3PAD0022 | 1000VA 3P 380-230v Hardwired | 1000 | 380 | 230 | ||
|
|
3PAD0023 | 1000VA 3P 415-380v Hardwired | 1000 | 415 | 380 | ||
|
|
3PAD0024 | 1000VA 3P 460-380v Hardwired | 1000 | 460 | 380 | ||
|
|
3PAD0025 | 1000VA 3P 400-200v Hardwired | 1000 | 400 | 200 | ||
|
|
3PAD0026 | 1000VA 3P 380-200v Hardwired | 1000 | 380 | 200 | ||
|
|
3PAD0027 | 1000VA 3P 400-208v Hardwired | 1000 | 400 | 208 | ||
|
|
3PAD0028 | 1000VA 3P 460-208v Hardwired | 1000 | 460 | 208 | ||
|
|
3PAD0028 | 1000VA 3P 460-208v Hardwired | 1000 | 460 | 208 | ||
|
|
3PAD0029 | 1000VA 3P 415-230v Hardwired | 1000 | 415 | 230 | ||
|
|
3PAD0040 | 2500VA 3P 415-230v Hardwired | 2500 | 415 | 230 | ||
|
|
3PAD0041 | 2500VA 3P 400-230v Hardwired | 2500 | 400 | 230 | ||
|
|
3PAD0042 | 2500VA 3P 380-230v Hardwired | 2500 | 380 | 230 | ||
|
|
3PAD0043 | 2500VA 3P 415-380v Hardwired | 2500 | 415 | 380 | ||
|
|
3PAD0044 | 2500VA 3P 460-380v Hardwired | 2500 | 460 | 380 | ||
|
|
3PAD0045 | 2500VA 3P 400-200v Hardwired | 2500 | 400 | 200 | ||
|
|
3PAD0046 | 2500VA 3P 380-200v Hardwired | 2500 | 380 | 200 | ||
|
|
3PAD0047 | 2500VA 3P 400-208v Hardwired | 2500 | 400 | 208 | ||
|
|
3PAD0048 | 2500VA 3P 460-208v Hardwired | 2500 | 460 | 208 | ||
 |
3PAD0061 | 5000VA 3P 400-230v Hardwired | 5000 | 400 | 230 | ||
|
|
3PAD0062 | 5000VA 3P 380-230v Hardwired | 5000 | 380 | 230 | ||
|
|
3PAD0063 | 5000VA 3P 415-380v Hardwired | 5000 | 415 | 380 | ||
|
|
3PAD0064 | 5000VA 3P 460-380v Hardwired | 5000 | 460 | 380 | ||
|
|
3PAD0065 | 5000VA 3P 400-200v Hardwired | 5000 | 400 | 200 | ||
|
|
3PAD0066 | 5000VA 3P 380-200v Hardwired | 5000 | 380 | 200 | ||
|
|
3PAD0067 | 5000VA 3P 400-208v Hardwired | 5000 | 400 | 208 | ||
|
|
3PAD0068 | 5000VA 3P 460-208v Hardwired | 5000 | 460 | 208 | ||
|
|
3PAD0110 | 10kVA 3P 415-230v Hardwired | 10000 | 415 | 230 | ||
|
|
3PAD0111 | 10kVA 3P 400-230v Hardwired | 10000 | 400 | 230 | ||
|
|
3PAD0112 | 10kVA 3P 380-230v Hardwired | 10000 | 380 | 230 | ||
|
|
3PAD0113 | 10kVA 3P 415-380v Hardwired | 10000 | 415 | 380 | ||
|
|
3PAD0114 | 10kVA 3P 460-380v Hardwired | 10000 | 460 | 380 | ||
|
|
3PAD0115 | 10kVA 3P 400-200v Hardwired | 10000 | 400 | 200 | ||
|
|
3PAD0116 | 10kVA 3P 380-200v Hardwired | 10000 | 380 | 200 | ||
|
|
3PAD0117 | 10kVA 3P 400-208v Hardwired | 10000 | 400 | 208 | ||
|
|
3PAD0118 | 10kVA 3P 460-208v Hardwired | 10000 | 460 | 208 | ||
|
|
3PAD0220 | 20kVA 3P 415-230v Hardwired | 20000 | 415 | 230 | ||
|
|
3PAD0221 | 20kVA 3P 400-230v Hardwired | 20000 | 400 | 230 | ||
|
|
3PAD0222 | 20kVA 3P 380-230v Hardwired | 20000 | 380 | 230 | ||
|
|
3PAD0223 | 20kVA 3P 415-380v Hardwired | 20000 | 415 | 380 | ||
|
|
3PAD0224 | 20kVA 3P 460-380v Hardwired | 20000 | 460 | 380 | ||
|
|
3PAD0225 | 20kVA 3P 400-200v Hardwired | 20000 | 400 | 200 | ||
|
|
3PAD0226 | 20kVA 3P 380-200v Hardwired | 20000 | 380 | 200 | ||
|
|
3PAD0227 | 20kVA 3P 400-208v Hardwired | 20000 | 400 | 208 | ||
|
|
3PAD0228 | 20kVA 3P 460-208v Hardwired | 20000 | 460 | 208 | ||
|
|
3PAD0300 | 30kVA 3P 415-230v Hardwired | 30000 | 415 | 230 | ||
|
|
3PAD0310 | 30kVA 3P 415-230v + N Hardwired | 30000 | 415 | 230 | ||
|
|
3PAD0311 | 30kVA 3P 400-230v + N Hardwired | 30000 | 400 | 230 | ||
|
|
3PAD0312 | 30kVA 3P 380-230v + N Hardwired | 30000 | 380 | 230 | ||
|
|
3PAD0313 | 30kVA 3P 415-380v + N Hardwired | 30000 | 415 | 380 | ||
|
|
3PAD0314 | 30kVA 3P 460-380v + N Hardwired | 30000 | 460 | 380 | ||
|
|
3PAD0315 | 30kVA 3P 400-200v + N Hardwired | 30000 | 400 | 200 | ||
|
|
3PAD0316 | 30kVA 3P 380-200v + N Hardwired | 30000 | 380 | 200 | ||
|
|
3PAD0317 | 30kVA 3P 400-208v + N Hardwired | 30000 | 400 | 208 |
