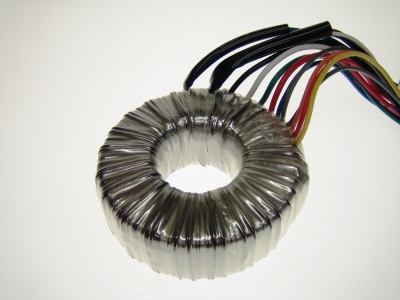

Valve Transformer
Click image to enlarge
Valve Transformer
- - Open style with 200mm flying leads
- - Low level of radiated magnetic field
- - Double insulated isolating safety transformer
- - Manufactured in accordance with EN61558 BS415 CE marked
- - Isolation Class B 130deg C
- - RoHS compliant
- - Prototypes & Special can be supplied in a few days
Product Filters
| Part Number | Description | Va | Input Voltage | Output Voltage | Price | Quantity | |
 |
VAL5003 | 30VA 230v to 230v 200ma 2x6.3v @1amp | 30 | 230 | 230v 200ma 2x6.3v @1amp | ||
|
|
VAL3830 | 30VA 230v to 100v 200ma 2x6.3v @2amp | 30 | 230 | 100v 200ma 2x6.3v @2amp | ||
|
|
VAL5002 | 30VA 230v to 2x5v @4.5amp | 30 | 230 | 5v x 2 @4.5amp | ||
|
|
VAL1201 | 80VA 230v to 2 x 150v @ 200ma 6.3v @ 2amps | 80 | 230 | 150v x 2 @ 200ma 6.3v @ | ||
|
|
VAL1792 | 80VA 230v to 6.3v ct 13-0-13v 1.5A 2 x 6.3v @500ma 40v @ 500ma | 80 | 230 | 6.3v ct 13-0-13v 1.5A 2 | ||
|
|
VAL2210 | 120VA 0-100-120v X 2 Output 280v @300ma 3 x 15v @500ma 70v @500ma 0-7-8.5v 3amp | 120 | 0 | Output 280v @300ma 3 x 15 | ||
|
|
VAL1601 | 130VA 230v to 375v @ 250ma 75v @ 300ma | 130 | 230 | 375v @ 250ma 75v @ 300ma |
