Standard Range Toroidal Transformers

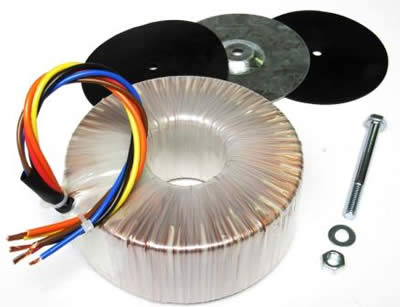

Click image to enlarge

Standard Range Toroidal Transformers

Airlink toroidal transformers meet modern requirements for smaller size, low magnetic interference field transformer. Featuring a nearly ideal physical construction, the design engineer can expect excellent performance. Small size & weight (aprox. 50% of conventional transformers), extremely low noise & low stray magnetic field make the toroidal transformer ideal for compact power supplies. Modern production techniques make it possible to produce toroidal transformers at practically the same prices as conventional transformers.

  • Open style Toroidal transformers with 230V a.c. primaries.
  • Open style with leads 230V primary 15VA to 15kVA
  • Multitude of primary & secondary voltages
  • Low profile, small size, lightweight transformer
  • Double insulated isolating safety transformers
  • Manufactured in accordance with EN61558-2-6 & UL1411 UL6500 UL60065
  • CE & RoHS Compliant
Click here for technical information >>

Product Filters

Part Number Description Va Input Voltage Output Voltage Price Quantity
CM0030206 30VA 230v to 2x6v 30 230 6+6
CM0030209 30VA 230v to 2x9v 30 230 9+9
CM0030212 30VA 230v to 2x12v 30 230 12+12
CM0030215 30VA 230v to 2x15v 30 230 15+15
CM0030218 30VA 230v to 2x18v 30 230 18+18
CM0030222 30VA 230v to 2x22v 30 230 22+22
CM0030224 30VA 230v to 2x24v 30 230 24+24
CM0030225 30VA 230v to 2x25v 30 230 25+25
CM0030230 30VA 230v to 2x30v 30 230 30+30
CM0030233 30VA 230v to 2x33v 30 230 33+33
CM0030170 30VA 230v to 110v 30 230 110
CM0030171 30VA 230v to 120v 30 230 120
CM0030172 30VA 230v to 230v 30 230 230
TT2489 30VA 230v to 6v 35v 30 230 6v + 35V
CM0050206 50VA 230v to 2x6v 50 230 6+6
CM0050209 50VA 230v to 2x9v 50 230 9+9
CM0050112 50VA 230v to 1x12v 50 230 12
CM0050212 50VA 230v to 2x12v 50 230 12+12
CM0050215 50VA 230v to 2x15v 50 230 15+15
CM0050218 50VA 230v to 2x18v 50 230 18+18
CM0050220 50VA 230v to 2x20v 50 230 20+20
CM0050222 50VA 230v to 2x22v 50 230 22+22
CM0050224 50VA 230v to 2x24v 50 230 24+24
CM0050225 50VA 230v to 2x25v 50 230 25+25
CM0050230 50VA 230v to 2x30v 50 230 30+30
CM0050233 50VA 230v to 2x33v 50 230 33+33
CM0050240 50VA 230v to 2x40v 50 230 40+40
CM0050242 50VA 230v to 2x42v 50 230 42+42
CM0050250 50VA 230v to 2x50v 50 230 50+50
CM0050255 50VA 230v to 2x55v 50 230 55+55
CM0050170 50VA 230v to 110v 50 230 110
CM0050171 50VA 230v to 120v 50 230 120
CM0050172 50VA 230v to 230v 50 230 230
CM0050275 50VA 230v to 2x75v 50 230 55+55
CM0080206 80VA 230v to 2x6v 80 230 6+6
CM0080209 80VA 230v to 2x9v 80 230 9+9
CM0080212 80VA 230v to 1x12v 80 230 12
CM0080212 80VA 230v to 2x12v 80 230 12+12
CM0080215 80VA 230v to 2x15v 80 230 15+15
CM0080218 80VA 230v to 2x18v 80 230 18+18
CM0080220 80VA 230v to 2x20v 80 230 20+20
CM0080222 80VA 230v to 2x22v 80 230 22+22
CM0080224 80VA 230v to 2x24v 80 230 24+24
CM0080225 80VA 230v to 2x25v 80 230 25+25
CM0080230 80VA 230v to 2x30v 80 230 30+30
CM0080233 80VA 230v to 2x33v 80 230 33+33
CM0080236 80VA 230v to 2x36v 80 230 36+36
CM0080240 80VA 230v to 2x40v 80 230 40+40
CM0080242 80VA 230v to 2x42v 80 230 42+42
CM0080250 80VA 230v to 2x50v 80 230 50+50
CM0080255 80VA 230v to 2x55v 80 230 55+55
CM0080170 80VA 230v to 110v 80 230 110
CM0080171 80VA 230v to 120v 80 230 120
CM0080172 80VA 230v to 230v 80 230 230
ET105 105VA 230v to 12v Electronic transformer for LV halogen lamps 105 230 11.6
CM0120206 120VA 230v to 2x6v 120 230 6+6
CM0120209 120VA 230v to 2x9v 120 230 9+9
CM0120112 120VA 230v to 1x12v 120 230 12
TT0100 100VA 230v to 1x12v Lighting Transformer 120 230 12
CM0120212 120VA 230v to 2x12v 120 230 12+12
CM0120215 120VA 230v to 2x15v 120 230 15+15
CM0120218 120VA 230v to 2x18v 120 230 18+18
CM0120220 120VA 230v to 2x20v 120 230 20+20
CM0120222 120VA 230v to 2x22v 120 230 22+22
CM0120224 120VA 230v to 2x24v 120 230 24+24
CM0120225 120VA 230v to 2x25v 120 230 25+25
CM0120230 120VA 230v to 2x30v 120 230 30+30
CM0120233 120VA 230v to 2x33v 120 230 33+33
CM0120236 120VA 230v to 2x36v 120 230 36+36
CM0120240 120VA 230v to 2x40v 120 230 40+40
CM0120242 120VA 230v to 2x42v 120 230 42+42
CM0120250 120VA 230v to 2x50v 120 230 50+50
CM0120255 120VA 230v to 2x55v 120 230 55+55
CM0120170 120VA 230v to 110v 120 230 110
CM0120171 120VA 230v to 120v 120 230 120
CM0120172 120VA 230v to 230v 120 230 230
CM0120265 120VA 230v to 2x65v 120 230 65+65
TT0150 150VA 230v to 1x12v Lighting Transformer 150 230 12
CM0160209 160VA 230v to 2x9v 160 230 9+9
CM0160112 160VA 230v to 1x12v 160 230 12
CM0160212 160VA 230v to 2x12v 160 230 12+12
CM0160215 160VA 230v to 2x15v 160 230 15+15
CM0160218 160VA 230v to 2x18v 160 230 18+18
CM0160220 160VA 230v to 2x20v 160 230 20+20
CM0160222 160VA 230v to 2x22v 160 230 22+22
CM0160224 160VA 230v to 2x24v 160 230 24+24
CM0160225 160VA 230v to 2x25v 160 230 25+25
CM0160230 160VA 230v to 2x30v 160 230 30+30
CM0160233 160VA 230v to 2x33v 160 230 33+33
CM0160236 160VA 230v to 2x36v 160 230 36+36
CM0160240 160VA 230v to 2x40v 160 230 40+40
CM0160242 160VA 230v to 2x42v 160 230 42+42
CM0160250 160VA 230v to 2x50v 160 230 50+50
CM0160255 160VA 230v to 2x55v 160 230 55+55
CM0160170 160VA 230v to 110v 160 230 110
CM0160171 160VA 230v to 120v 160 230 120
CM0160172 160VA 230v to 230v 160 230 230
CM0225112 200VA 230v to 1x12v Lighting transformer 200 230 12
CM0225209 225VA 230v to 2x9v 225 230 9+9
TT0200 200VA 230v to 1x12v 225 230 12
CM0225212 225VA 230v to 2x12v 225 230 12+12
CM0225215 225VA 230v to 2x15v 225 230 15+15
CM0225218 225VA 230v to 2x18v 225 230 18+18
CM0225220 225VA 230v to 2x20v 225 230 20+20
CM0225222 225VA 230v to 2x22v 225 230 22+22
CM0225224 225VA 230v to 2x24v 225 230 24+24
CM0225225 225VA 230v to 2x25v 225 230 25+25
CM0225230 225VA 230v to 2x30v 225 230 30+30
CM0225233 225VA 230v to 2x33v 225 230 33+33
CM0225238 225VA 230v to 2x38v 225 230 38+38
CM0225240 225VA 230v to 2x40v 225 230 40+40
CM0225242 225VA 230v to 2x42v 225 230 42+42
CM0225245 225VA 230v to 2x45v 225 230 45+45
CM0225250 225VA 230v to 2x50v 225 230 50+50
CM0225255 225VA 230v to 2x55v 225 230 55+55
CM0225260 225VA 230v to 2x60v 225 230 60+60
CM0225170 225VA 230v to 110v 225 230 110
CM0225171 225VA 230v to 120v 225 230 120
CM0225172 225VA 230v to 230v 225 230 230
CM0300209 300VA 230v to 2x9v 300 230 9+9
CM0300112 300VA 230v to 1x12v 300 230 12
TT0300 300VA 230v to 12v Lighting transformer 300 230 12
CM0300212 300VA 230v to 2x12v 300 230 12+12
CM0300215 300VA 230v to 2x15v 300 230 15+15
CM0300218 300VA 230v to 2x18v 300 230 18+18
CM0300220 300VA 230v to 2x20v 300 230 20+20
CM0300222 300VA 230v to 2x22v 300 230 22+22
CM0300224 300VA 230v to 2x24v 300 230 24+24
CM0300225 300VA 230v to 2x25v 300 230 25+25
CM0300230 300VA 230v to 2x30v 300 230 30+30
CM0300233 300VA 230v to 2x33v 300 230 33+33
CM0300236 300VA 230v to 2x36v 300 230 36+36
CM0300240 300VA 230v to 2x40v 300 230 40+40
CM0300242 300VA 230v to 2x42v 300 230 42+42
CM0300245 300VA 230v to 2x45v 300 230 45+45
CM0300250 300VA 230v to 2x50v 300 230 50+50
CM0300255 300VA 230v to 2x55v 300 230 55+55
CM0300260 300VA 230v to 2x60v 300 230 60+60
CM0300170 300VA 230v to 110v 300 230 110
CM0300171 300VA 230v to 120v 300 230 120
CM0300172 300VA 230v to 230v 300 230 230
CM0500209 500VA 230v to 2x9v 500 230 9+9
CM0500112 500VA 230v to 1x12v 500 230 12
CM0500212 500VA 230v to 2x12v 500 230 12+12
CM0500215 500VA 230v to 2x15v 500 230 15+15
CM0500218 500VA 230v to 2x18v 500 230 18+18
CM0500220 500VA 230v to 2x20v 500 230 20+20
CM0500222 500VA 230v to 2x22v 500 230 22+22
CM0500224 500VA 230v to 2x24v 500 230 24+24
CM0500225 500VA 230v to 2x25v 500 230 25+25
CM0500230 500VA 230v to 2x30v 500 230 30+30
CM0500233 500VA 230v to 2x33v 500 230 33+33
CM0500236 500VA 230v to 2x36v 500 230 36+36
CM0500240 500VA 230v to 2x40v 500 230 40+40
CM0500242 500VA 230v to 2x42v 500 230 42+42
CM0500245 500VA 230v to 2x45v 500 230 45+45
CM0500250 500VA 230v to 2x50v 500 230 50+50
CM0500255 500VA 230v to 2x55v 500 230 55+55
CM0500260 500VA 230v to 2x60v 500 230 60+60
CM0500265 500VA 230v to 2x65v 500 230 65+65
CM0500170 500VA 230v to 110v 500 230 110
CM0500171 500VA 230v to 120v 500 230 120
CM0500172 500VA 230v to 230v 500 230 230
CM0625212 625VA 230v to 2x12v 625 230 12+12
CM0625215 625VA 230v to 2x15v 625 230 15+15
CM0625218 625VA 230v to 2x18v 625 230 18+18
CM0625220 625VA 230v to 2x20v 625 230 20+20
CM0625222 625VA 230v to 2x22v 625 230 22+22
CM0625224 625VA 230v to 2x24v 625 230 24+24
CM0625225 625VA 230v to 2x25v 625 230 25+25
CM0625230 625VA 230v to 2x30v 625 230 30+30
CM0625233 625VA 230v to 2x33v 625 230 33+33
CM0625236 625VA 230v to 2x36v 625 230 36+36
CM0625240 625VA 230v to 2x40v 625 230 40+40
CM0625242 625VA 230v to 2x42v 625 230 42+42
CM0625245 625VA 230v to 2x45v 625 230 45+45
CM0625250 625VA 230v to 2x50v 625 230 50+50
CM0625255 625VA 230v to 2x55v 625 230 55+55
CM0625260 625VA 230v to 2x60v 625 230 60+60
CM0625265 625VA 230v to 2x65v 625 230 65+65
CM0625270 625VA 230v to 2x70v 625 230 70+70
CM0625170 625VA 230v to 100v 625 230 100
CM0625173 625VA 230v to 110v 625 230 110
CM0625171 625VA 230v to 120v 625 230 120
CM0625172 625VA 230v to 230v 625 230 230
CM0750412 750VA 230v to 4x12v 750 230 4 X 12
CM0750215 750VA 230v to 2x15v 750 230 15+15
CM0750218 750VA 230v to 2x18v 750 230 18+18
CM0750220 750VA 230v to 2x20v 750 230 20+20
CM0750222 750VA 230v to 2x22v 750 230 22+22
CM0750224 750VA 230v to 2x24v 750 230 24+24
CM0750225 750VA 230v to 2x25v 750 230 25+25
CM0750230 750VA 230v to 2x30v 750 230 30+30
CM0750233 750VA 230v to 2x33v 750 230 33+33
CM0750236 750VA 230v to 2x36v 750 230 36+36
CM0750240 750VA 230v to 2x40v 750 230 40+40
CM0750242 750VA 230v to 2x42v 750 230 42+42
CM0750245 750VA 230v to 2x45v 750 230 45+45
CM0750250 750VA 230v to 2x50v 750 230 50+50
CM0750255 750VA 230v to 2x55v 750 230 55+55
CM0750260 750VA 230v to 2x60v 750 230 60+60
CM0750265 750VA 230v to 2x65v 750 230 65+65
CM0750270 750VA 230v to 2x70v 750 230 70+70
CM0750170 750VA 230v to 100v 750 230 100
CM0750170 750VA 230v to 110v 750 230 110
CM0750175 750VA 230v to 2X115v 750 230 115+115
CM0750171 750VA 230v to 120v 750 230 120
CM0750172 750VA 230v to 230v 750 230 230
CM1000412 1000VA 230v to 4x12v 1000 230 12+12+12+12
CM1000218 1000VA 230v to 2x18v 1000 230 18+18
CM1000222 1000VA 230v to 2x22v 1000 230 22+22
CM1000224 1000VA 230v to 2x24v 1000 230 24+24
CM1000225 1000VA 230v to 2x25v 1000 230 25+25
CM1000230 1000VA 230v to 2x30v 1000 230 30+30
CM1000233 1000VA 230v to 2x33v 1000 230 33+33
CM1000236 1000VA 230v to 2x36v 1000 230 36+36
CM1000240 1000VA 230v to 2x40v 1000 230 40+40
CM1000242 1000VA 230v to 2x42v 1000 230 42+42
CM1000245 1000VA 230v to 2x45v 1000 230 45+45
CM1000250 1000VA 230v to 2x50v 1000 230 50+50
CM1000255 1000VA 230v to 2x55v 1000 230 55+55
CM1000260 1000VA 230v to 2x60v 1000 230 60+60
CM1000265 1000VA 230v to 2x65v 1000 230 65+65
CM1000270 1000VA 230v to 2x70v 1000 230 70+70
CM1000170 1000VA 230v to 110v 1000 230 110
CM1000175 1000VA 230v to 2X115 1000 230 115+115
CM1000171 1000VA 230v to 120v 1000 230 120
CM1000173 1000VA 415v to 230v 1000 415 230
CM1200424 1200VA 230v to 4x24v 1200 230 24+24+24+24
CM1200230 1200VA 230v to 2x30v 1200 230 30+30
CM1200233 1200VA 230v to 2x33v 1200 230 33+33
CM1200236 1200VA 230v to 2x36v 1200 230 36+36
CM1200240 1200VA 230v to 2x40v 1200 230 40+40
CM1200242 1200VA 230v to 2x42v 1200 230 42+42
CM1200245 1200VA 230v to 2x45v 1200 230 45+45
CM1200250 1200VA 230v to 2x50v 1200 230 50+50
CM1200255 1200VA 230v to 2x55v 1200 230 55+55
CM1200260 1200VA 230v to 2x60v 1200 230 60+60
CM1200265 1200VA 230v to 2x65v 1200 230 65+65
CM1200270 1200VA 230v to 2x70v 1200 230 70+70
CM1200170 1200VA 230v to 110v 1200 230 110
CM1200175 1200VA 230v to 2X115 1200 230 115+115
CM1200171 1200VA 230v to 120v 1200 230 120
CM1200172 1200VA 230v to 230v 1200 230 230
CM1200176 1200VA 415v to 230v 1200 415 230
CM1500424 1500VA 230v to 4x24v 1500 230 24+24+24+24
CM1500233 1500VA 230v to 2x33v 1500 230 33+33
CM1500236 1500VA 230v to 2x36v 1500 230 36+36
CM1500240 1500VA 230v to 2x40v 1500 230 40+40
CM1500242 1500VA 230v to 2x42v 1500 230 42+42
CM1500245 1500VA 230v to 2x45v 1500 230 45+45
CM1500250 1500VA 230v to 2x50v 1500 230 50+50
CM1500255 1500VA 230v to 2x55v 1500 230 55+55
CM1500260 1500VA 230v to 2x60v 1500 230 60+60
CM1500265 1500VA 230v to 2x65v 1500 230 65+65
CM1500270 1500VA 230v to 2x70v 1500 230 70+70
CM1500170 1500VA 230v to 110v 1500 230 110
CM1500175 1500VA 230v to 2X115 1500 230 115+115
CM1500171 1500VA 230v to 120v 1500 230 120
CM1500172 1500VA 230v to 230v 1500 230 230
CM1500176 1500VA 415v to 230v 1500 415 230
CM2000424 2000VA 230v to 4x24v 2000 230 24+24+24+24
CM2000433 2000VA 230v to 4x33v 2000 230 33+33+33+33
CM2000236 2000VA 230v to 2x36v 2000 230 36+36
CM2000240 2000VA 230v to 2x40v 2000 230 40+40
CM2000242 2000VA 230v to 2x42v 2000 230 42+42
CM2000245 2000VA 230v to 2x45v 2000 230 45+45
CM2000250 2000VA 230v to 2x50v 2000 230 50+50
CM2000255 2000VA 230v to 2x55v 2000 230 55+55
CM2000260 2000VA 230v to 2x60v 2000 230 60+60
CM2000265 2000VA 230v to 2x65v 2000 230 65+65
CM2000270 2000VA 230v to 2x70v 2000 230 70+70
CM2000170 2000VA 230v to 110v 2000 230 110
CM2000175 2000VA 230v to 2X115 2000 230 115+115
CM2000171 2000VA 230v to 120v 2000 230 120
CM2000172 2000VA 230v to 230v 2000 230 230
CM2000176 2000VA 415v to 230v 2000 415 230
CM2000430 2000VA 230v to 4x30v 2000 230 30+30+30+30
CM2500450 2500VA 230v to 4x50v 2500 230 50+50+50_50
CM2500255 2500VA 230v to 2x55v 2500 230 55+55
CM2500260 2500VA 230v to 2x60v 2500 230 60+60
CM2500265 2500VA 230v to 2x65v 2500 230 65+65
CM2500270 2500VA 230v to 2x70v 2500 230 70+70
CM2500170 2500VA 230v to 110v 2500 230 110
CM2500175 2500VA 230v to 2X115 2500 230 115+115
CM2500171 2500VA 230v to 120v 2500 230 120
CM2500172 2500VA 230v to 230v 2500 230 230
CM2500176 2500VA 415v to 230v 2500 415 230
CM3000450 3000VA 230v to 4x50v 3000 230 50+50+50_50
CM3000455 3000VA 230v to 4x55v 3000 230 55+55+55+55
CM3000270 3000VA 230v to 2x70v 3000 230 70+70
CM3000170 3000VA 230v to 2x110v 3000 230 110+110
CM3000175 3000VA 230v to 2X115 3000 230 115+115
CM3000171 3000VA 230v to 2x120v 3000 230 120+120
CM3000172 3000VA 230v to 230v 3000 230 230
CM3000176 3000VA 415v to 230v 3000 415 230
CM5000210 5000VA 230v to 2x100v 5000 230 100+100
CM5000170 5000VA 230v to 2x110v 5000 230 110+110
CM5000175 5000VA 230v to 2X115 5000 230 115+115
CM5000171 5000VA 230v to 2x120v 5000 230 120+120
CM5000172 5000VA 230v to 230v 5000 230 230
CM5000176 5000VA 415v to 230v 5000 415 230
CM6000370 6000VA 230v to 2x70v + 12v 6000 230 70+70 12
