WP5231 - Boating Transformers
Product Description: 5000va 230v to 230v Isolating transformer for Boats to prevent Galvanic corrosion
Product Specification
| Part number: | WP5231 | ||||
| VA: | 5000 | ||||
| Input vac: | 230 | Input current amps: | 21.00 | ||
| Output vac: | 230 | Output current amps: | 21.00 | ||
| Case: | E4 Yellow Steel case. Wall mounting. Waterproof to IP55 | ||||
| Dimensions: | Ht:350 L:255 W:235 (mm) | Weight: | 30kg | ||
| Surge protection: | SL35 30A Surge limitor | ||||
| Type: | Safety Isolating transformer Conforms to EN61558-2-23 CE & RoHS | ||||

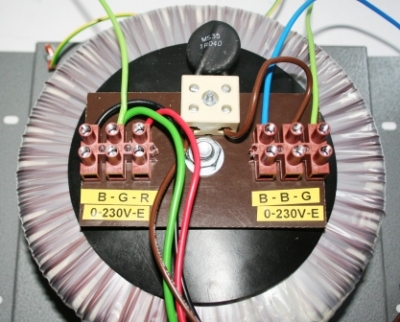

| Input Termination: | TB04 3way screw terminal Large 76A | ||||
| Primary Protection: | SP30 Push to reset circuit breaker | ||||
| Input notes | Isolation Transformer for installation on boats to Isolate the vessel 'ground' from the actual 'ground' (ie the earth) in order to prevent galvanic corrosion. | ||||
| Output Termination: | TB04 3way screw terminal Large 76A | ||||
| General Notes | Ignition protection: Sealed unit suitable for fitting in engine bay | ||||
Prices per unit
| 1-4 | 5-24 | 25-49 | 50-99 | 100+ |
| £304.00 | £288.80 | £273.60 | £266.00 | £258.40 |
| Quantity: | ||||
Part number: WP5231
5000va 230v to 230v Isolating transformer for Boats to prevent Galvanic corrosion
Part number: WP5231
5000va 230v to 230v Isolating transformer for Boats to prevent Galvanic corrosion
