Product Description: 1600va 230v to 230v Isolating transformer for Boats to prevent Galvanic corrosion
Product Specification
Part number:
WP1631
VA:
1600
Input vac:
230
Input current amps:
7.00
Output vac:
230
Output current amps:
6.96
Case:
701 Yellow Durable reinforced waterproof case IP67
Dimensions:
Ht:260 W:190 L:190
Weight:
12kg
Surge protection:
SL35 30A Surge limitor
Type:
Safety Isolating transformer Conforms to EN61558-2-23 CE & RoHS
Input Termination:
TB03 3way screw terminal Medium 24A
Primary Protection:
SP10 Push to reset circuit breaker
Input notes
Isolation Transformer for installation on boats to Isolate the vessel 'ground' from the actual 'ground' (ie the earth) in order to prevent galvanic corrosion.
Output Termination:
TB03 3way screw terminal Medium 24A
Prices per unit
1-4
5-24
25-49
50-99
100+
£150.00
£142.50
£135.00
£131.25
£127.50
Quantity:
Part number: WP1631
1600va 230v to 230v Isolating transformer for Boats to prevent Galvanic corrosion
Please Note: Extras selected from the below list will be added to each of your transformers.
If you have selected 5 transformers and you would like the same extra for each, then please only select the extra once.
Customise & Buy - Customise your transformers with these extras
Part No.
Description
Price
Quantity
plug230v16A

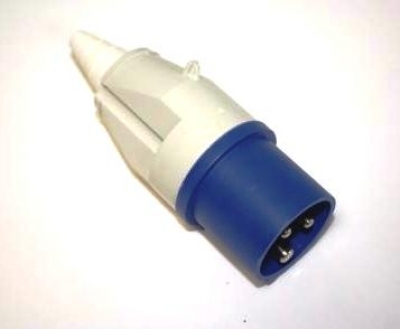

10 meter Mains lead fitted with Blue 3pin 230volt 16amp plug
24.00
Notes:
10meter Artic blue 1.5mm fitted with Blue 16A Plug
