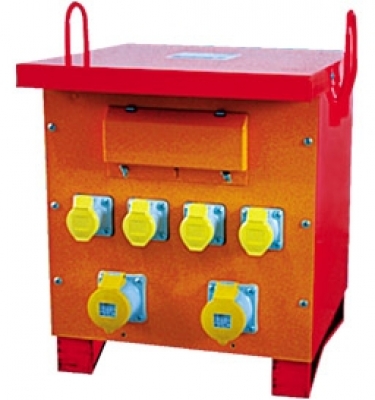

| Part number: | RX10 | | |
| VA: | 10000 |
| Input vac: | 230 |
Input current amps: | 43.48 |
| Output vac: | 110 |
| Case: | Sheet steel ventilation drip proof IP40 + IP44 Weatherproof covers over MCBs |
| Dimensions: | Depth 480mm x Width 420 x Height 635mm |
Weight: | 70kg |
| Surge protection: | SL35 Surge Limitor |
| Type: | Safety Isolating transformer Conforms to European standard EN60898 (-25 deg C - +55 deg C) |
| Input Termination: | 50 amp screw terminal block |
| Primary Protection: | 1 x 50 amp 2 pole type D MCB |
| Input notes | Thermal insulation Class E. Maximum 120 deg C |
| Output Termination: | 4x 16amp & 2 x 32amp Yellow sockets |
| Secondary Protection: | 2 x 16 amp 2 pole type C MCB + 2 x 32 amp 2 pole t |
| Output notes | 8000va continuous rating |
|
| General Notes | Climate Class outdoor use |
